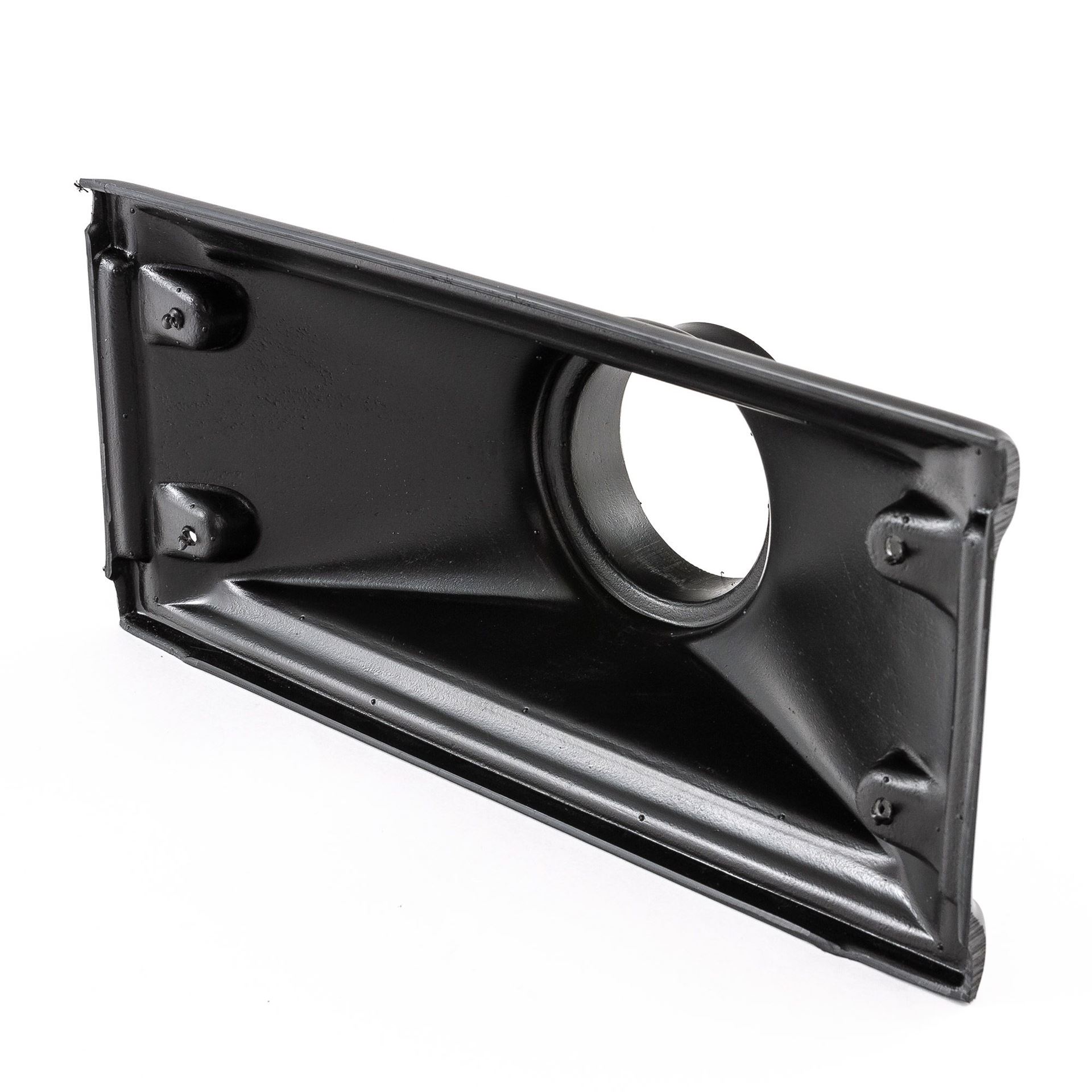

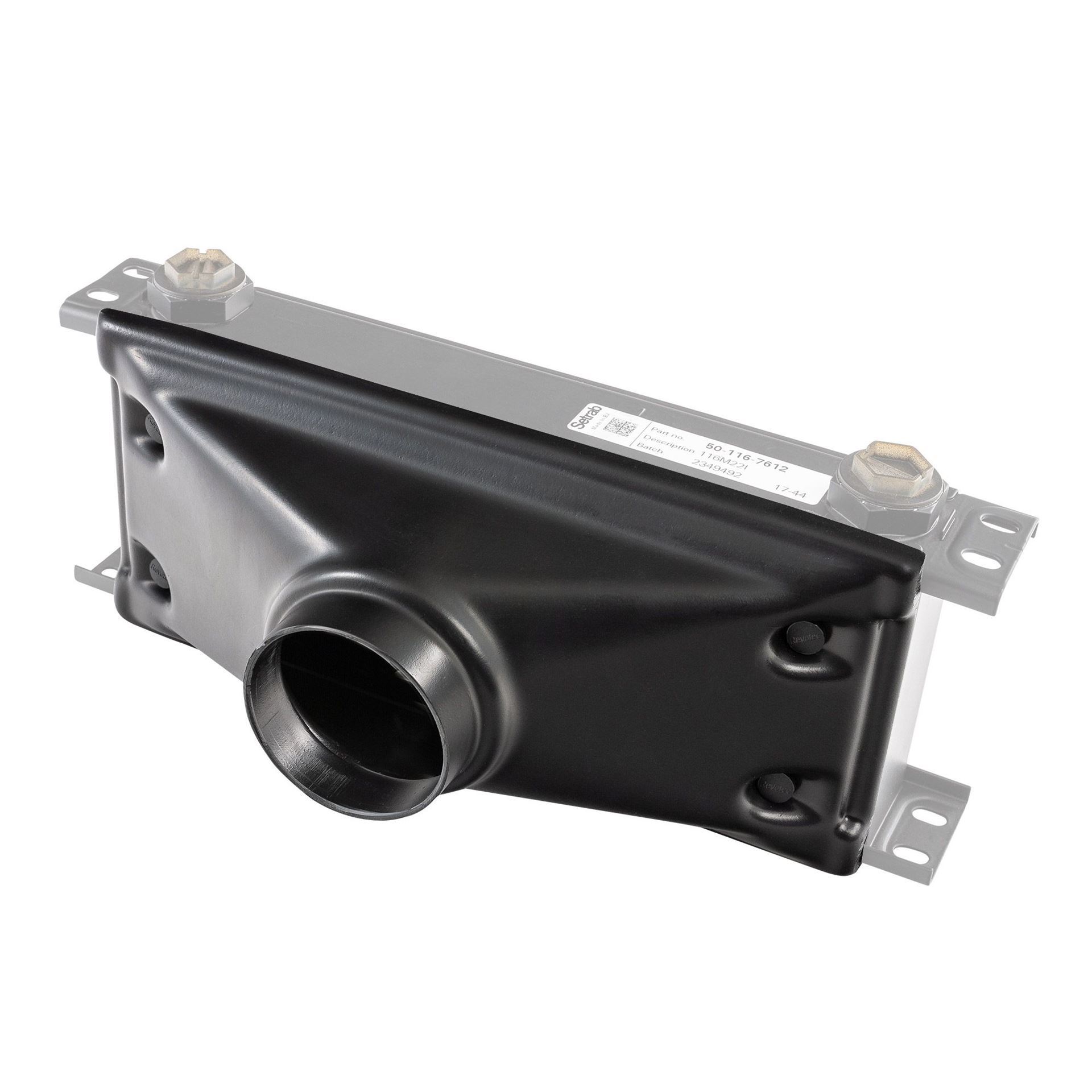

These oil cooler ducts provide an easy fit solution for ducting air to oil coolers. They attach to the oil cooler with 4 pull through fasteners which pass through the matrix. Rubber washers prevent the matrix from damage.
- The ducts will fit oil coolers with a 235mm wide matrix.
- Available to suit 13, 16 & 19 Row oil coolers.

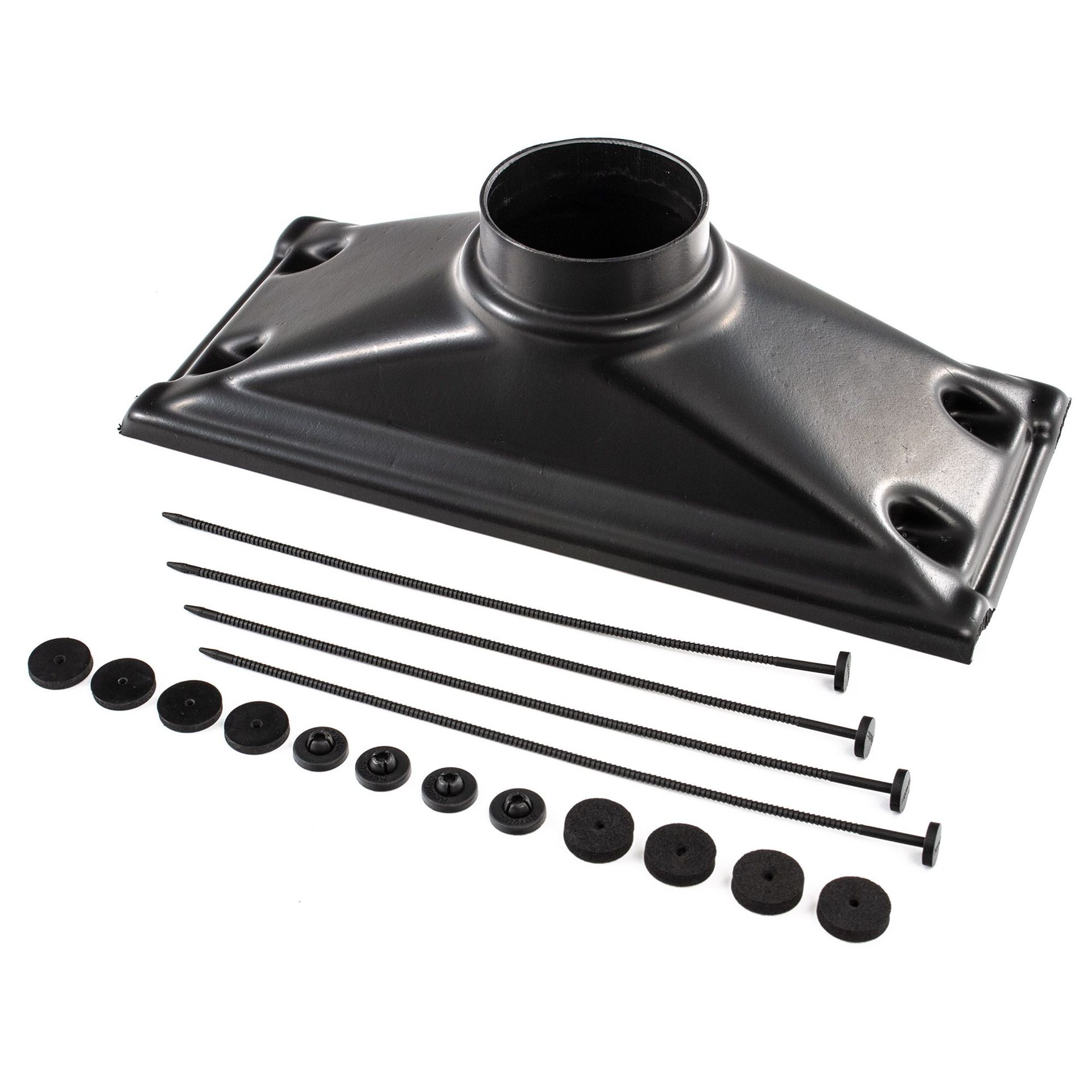

- Fitting kit includes:
- 1 x cooler duct
- 4 x pull through ties
- 8 x rubber washers
- 4 x locking tabs
| Cooler Height (Rows) |
Duct Width (mm) |
Duct Height (mm) |
Inlet Diam. (mm) |
Duct Depth (mm) |
| 13 |
260 |
100 |
76 / 63 |
160 |
| 16 |
260 |
120 |
89 / 76 |
160 |
| 19 |
260 |
140 |
76 / 63 x2 |
160 |
