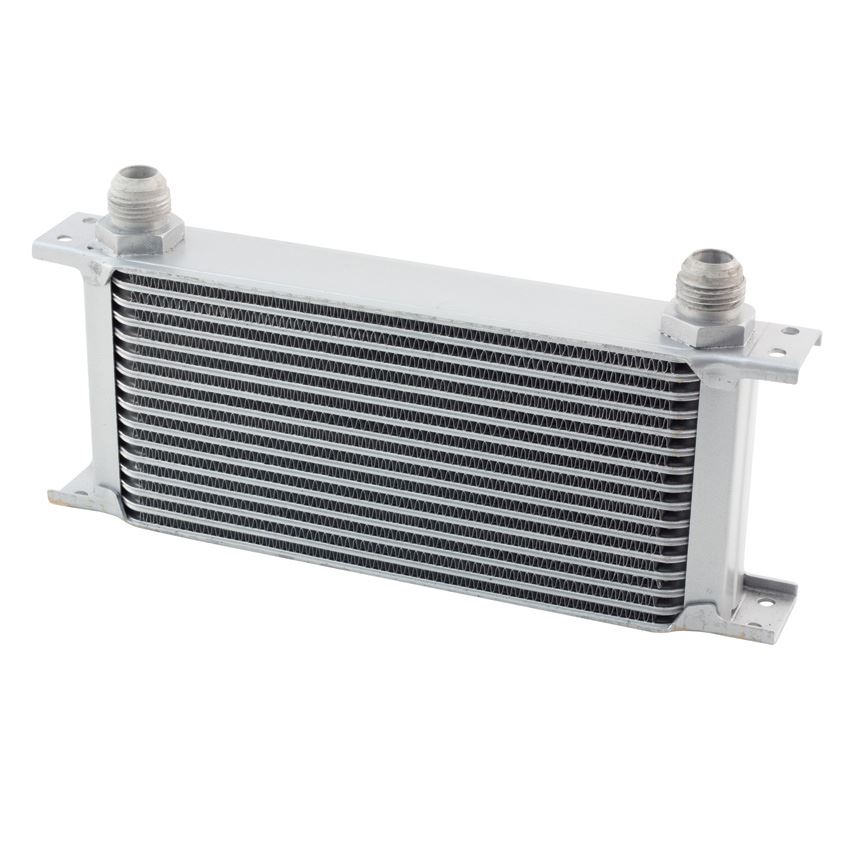

These stack plate (modular style) coolers are fully brazed on all contact surfaces inside and out, further more they have a brazed seam that withstands vibrations and pulsations in the toughest environment. Any performance vehicle can benefit from an oil Cooler.
| ROWS |
LENGTH |
HEIGHT |
DEPTH |
| 13 |
330mm |
77mm |
51mm |
| 16 |
330mm |
123mm |
51mm |
| 19 |
330mm |
146mm |
51mm |
| 25 |
330mm |
193mm |
51mm |
Connections:
-10(AN) Male
- For use in engines, transmissions, hydraulic systems, etc.
- Maximum working pressure is 10 Bar (1 MPa or 145 PSI)
- Burst pressure is 25 Bar (2.5 MPa or 362 PSI)
Pricing starting from $255.00
