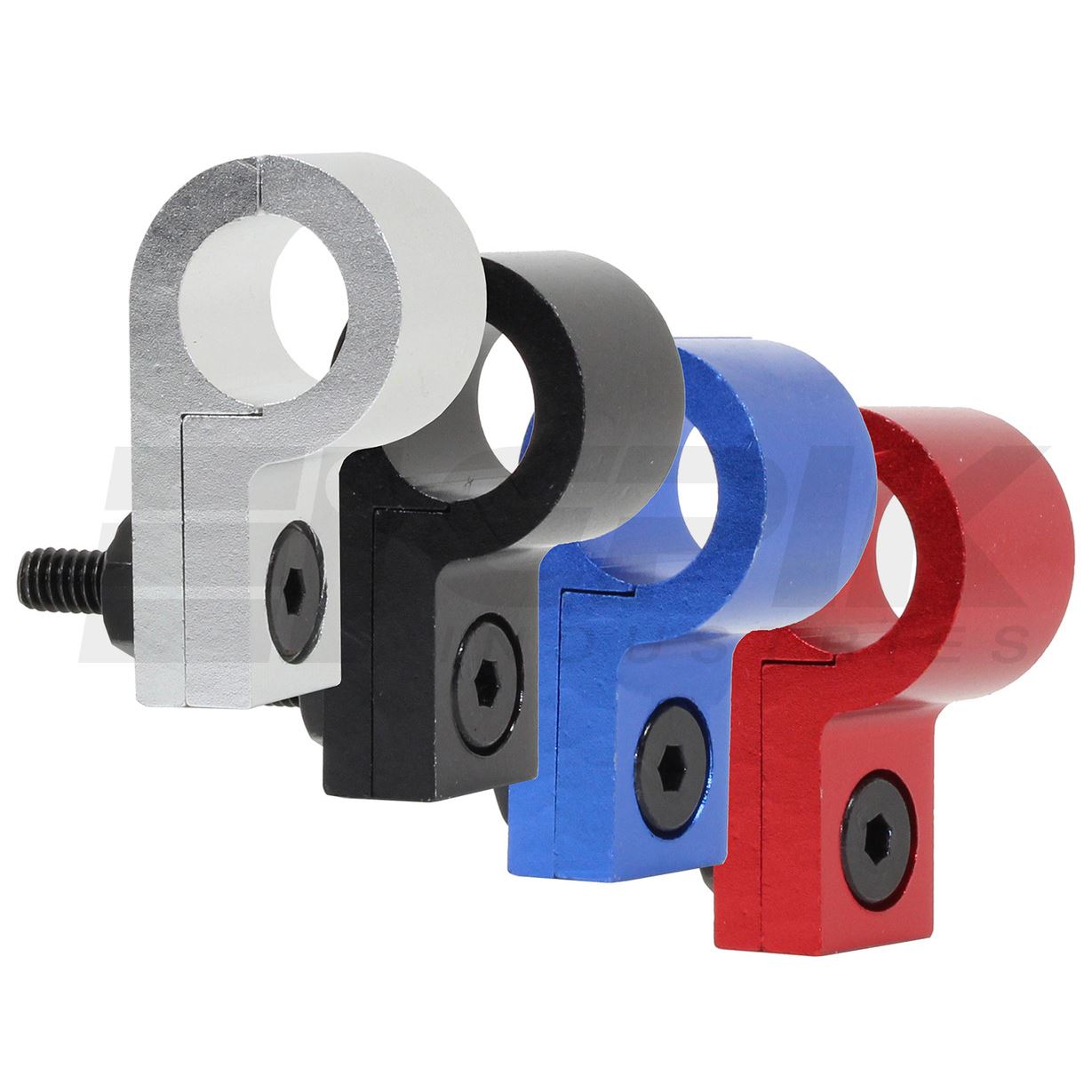

BILLET P-CLIP & SEPARATOR - HOSE SIZE CHART
| SIZE |
HARDLINE |
SF 100 SERIES |
SF 200 SERIES |
SF PUSHLOCK |
BARRICADE |
| 3/16" (4.8mm) |
3/16" |
|
|
|
|
| 1/4" (6.4mm) |
1/4" |
|
200-03 |
|
|
| 5/16" (7.9mm) |
5/16" |
|
200-04 |
|
|
| 3/8" (9.5mm) |
3/8" |
|
|
|
|
| 7/16" (11.1) |
|
100-04 |
200-06 |
400-04, 332-04 |
|
| 1/2" (12.7mm) |
1/2" |
|
|
|
1/4" |
| 17/32" (13.5mm) |
|
100-06, 120-06 |
200-08 |
|
|
| 9/16" (14.3mm) |
|
As above loose fit |
As above loose fit |
|
5/16" |
| 19/32" (15.1mm) |
|
|
|
332-06 |
3/8" |
| 5/8" (15.9mm) |
5/8" |
100-08, 120-08 |
200-10 |
400-06 |
|
| 21/32" (16.7mm) |
|
As above loose fit |
As above loose fit |
As above loose fit |
|
| 11/16" (17.5mm) |
|
|
|
|
|
| 3/4" (19.1mm) |
3/4" |
100-10, 120-10 |
|
400-08, 332-08 |
|
| 13/16" (20.6mm) |
|
As above loose fit |
|
As above loose fit |
|
| 7/8" (22.2mm) |
|
120-12 |
|
332-10 |
|
| 15/16" (23.8mm) |
|
100-12 |
|
400-10 |
|
| 1" (25.4mm) |
1" |
|
|
400-12, 332-12 |
|
| 1-5/64" (27.0mm) |
|
100-16 |
|
|
|
