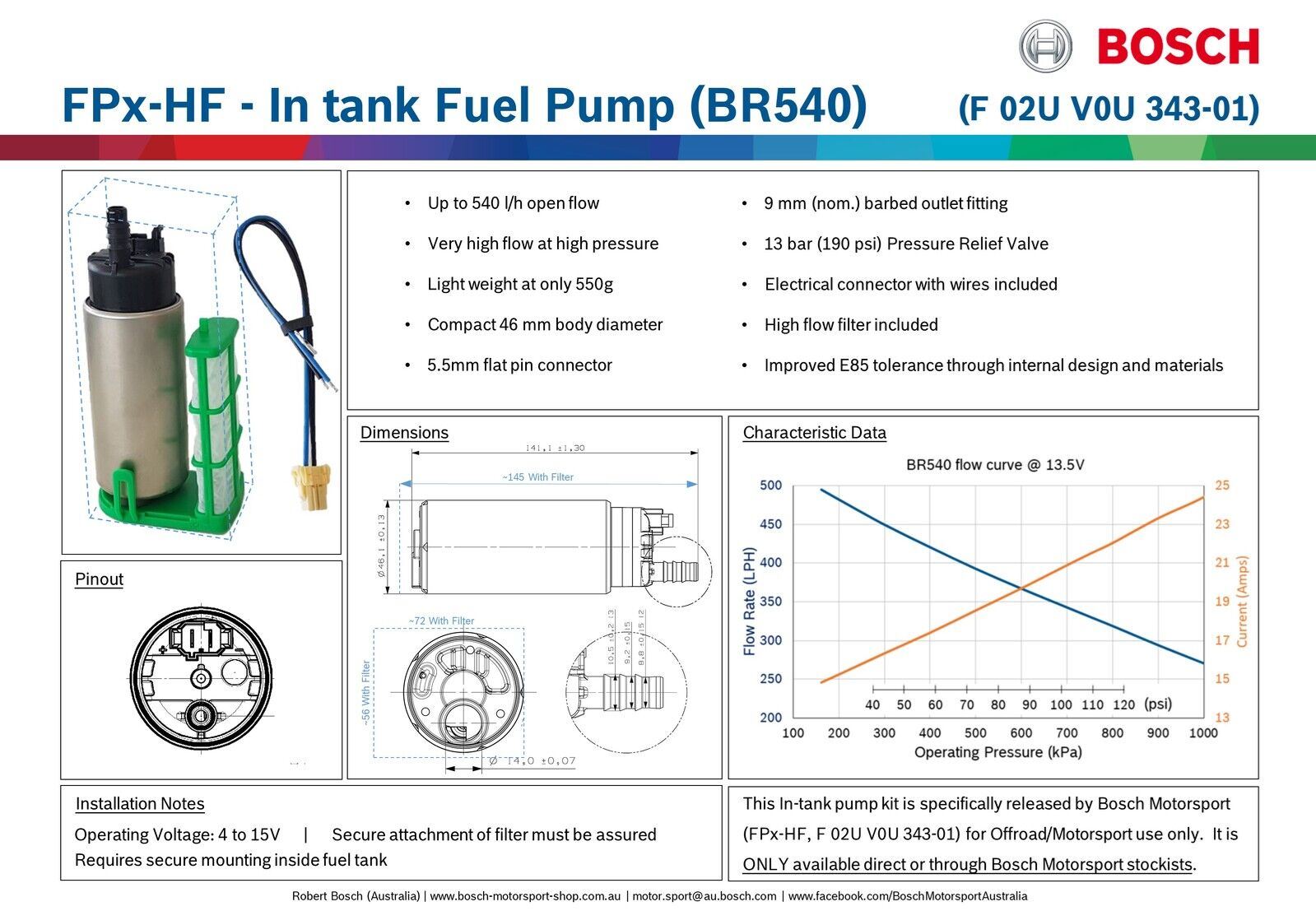

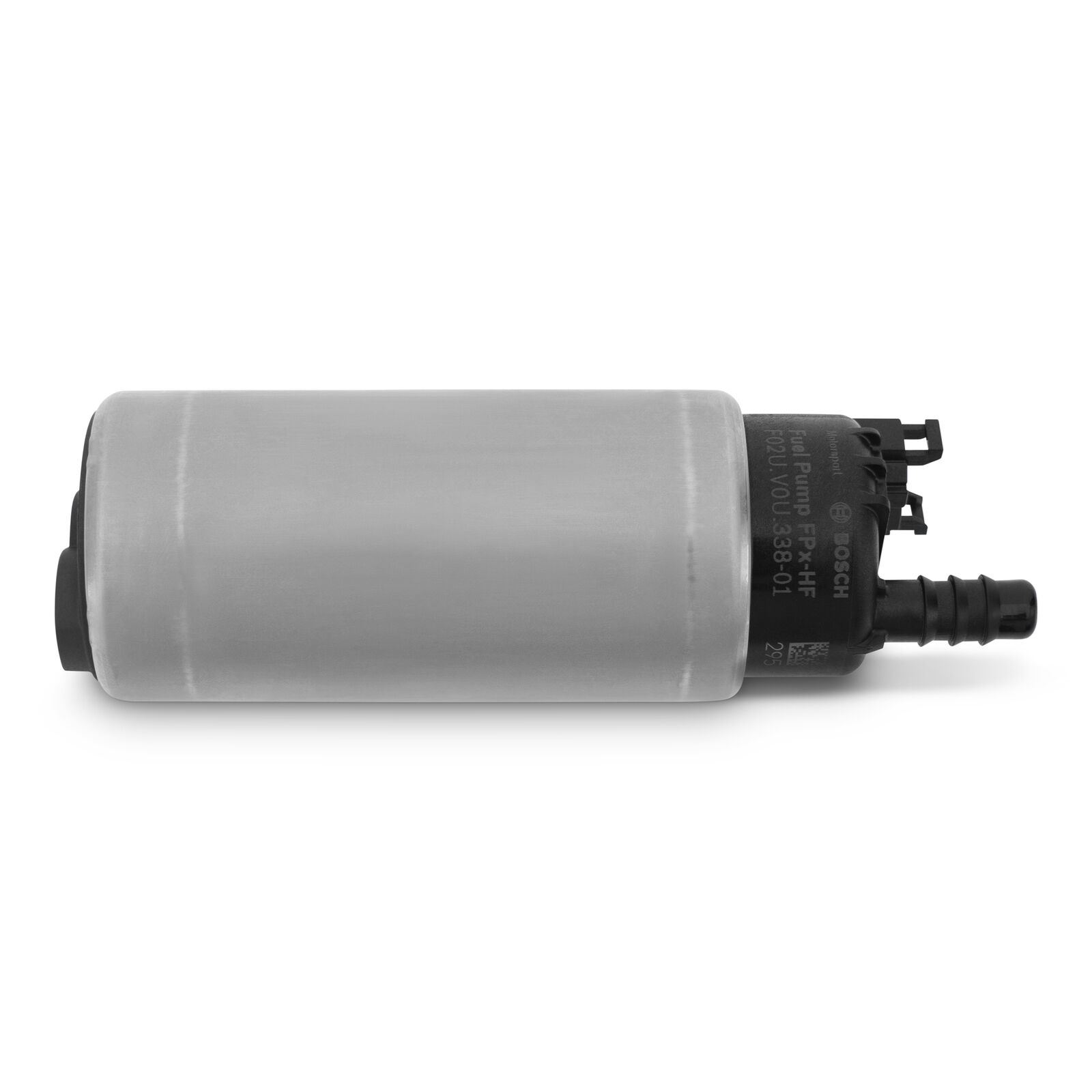

Bosch Motorsport BR540 Intank Fuel Pump is the highest flowing Bosch in-tank fuel pump available
- Up to 540 l/h @ open flow
- Up to 460 l/h @ 40Psi (2.75bar)
- Up to 380 l/h @ 80Psi (5.5bar)
- An amazing 270l/h @ 145Psi (10.0bar)
- High flow all the way up to the 190Psi (13.0bar) Pressure Relief Valve setting

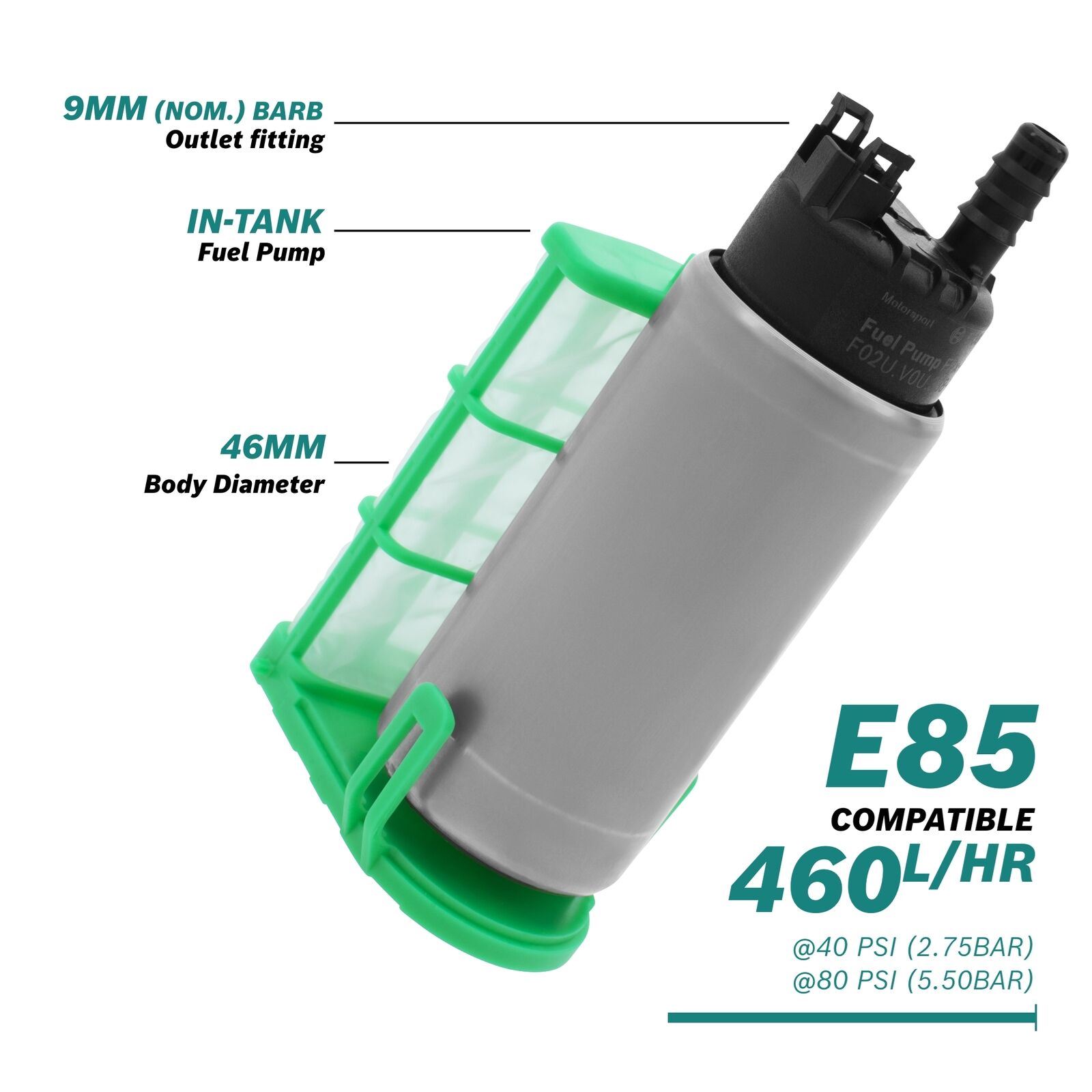

- 9.0mm (nom.) barbed outlet fitting suits rubber or nylon hose
- Light weight (550g) and Compact 46mm body size

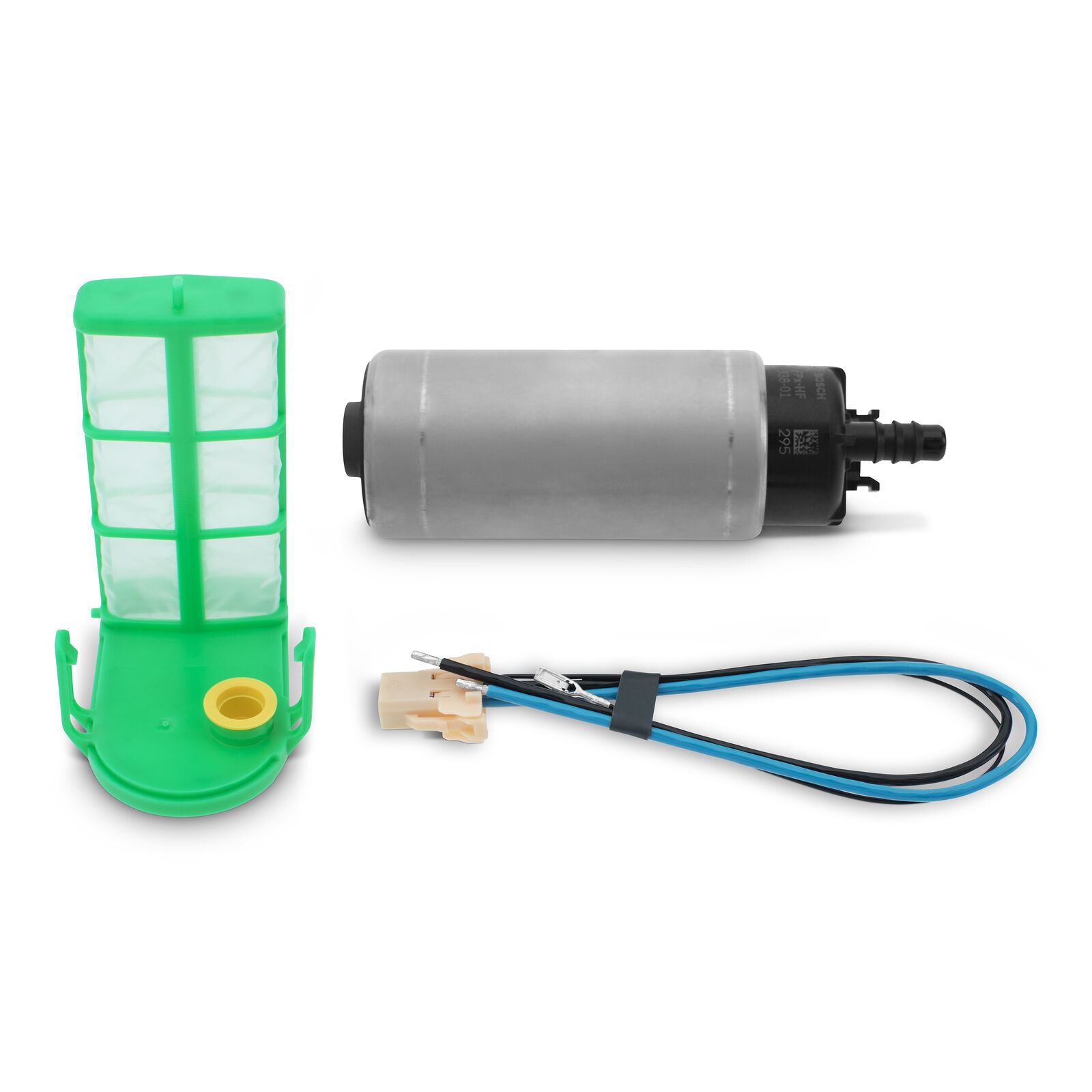

- Includes electrical connector with wires
- Includes High flow filter
- Draws ~16A @ 40Psi (2.75bar), ~19A @ 80Psi (5.5bar), ~24A @ 145Psi (10.0bar)
NOTE: This pump needs to be securely installed inside the fuel tank via hanger or similar. Care should be taken to prevent separation of the filter from the pump. This pump has been released by Bosch Motorsport only for motorsport/offroad applications.
Application and model suitability:
- Generic use
- Custom applications
- May require custom fittings & adaptors
SKU: F 02U V0U 343-01
