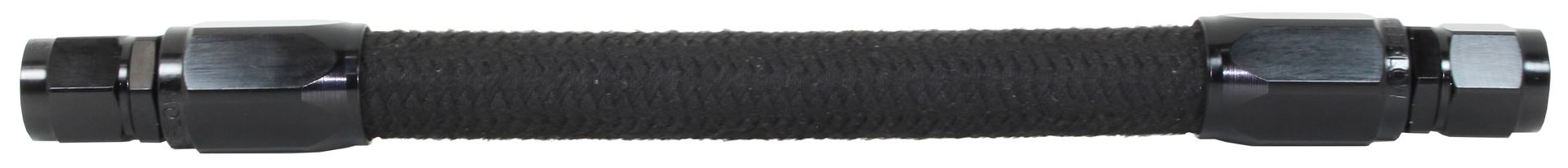

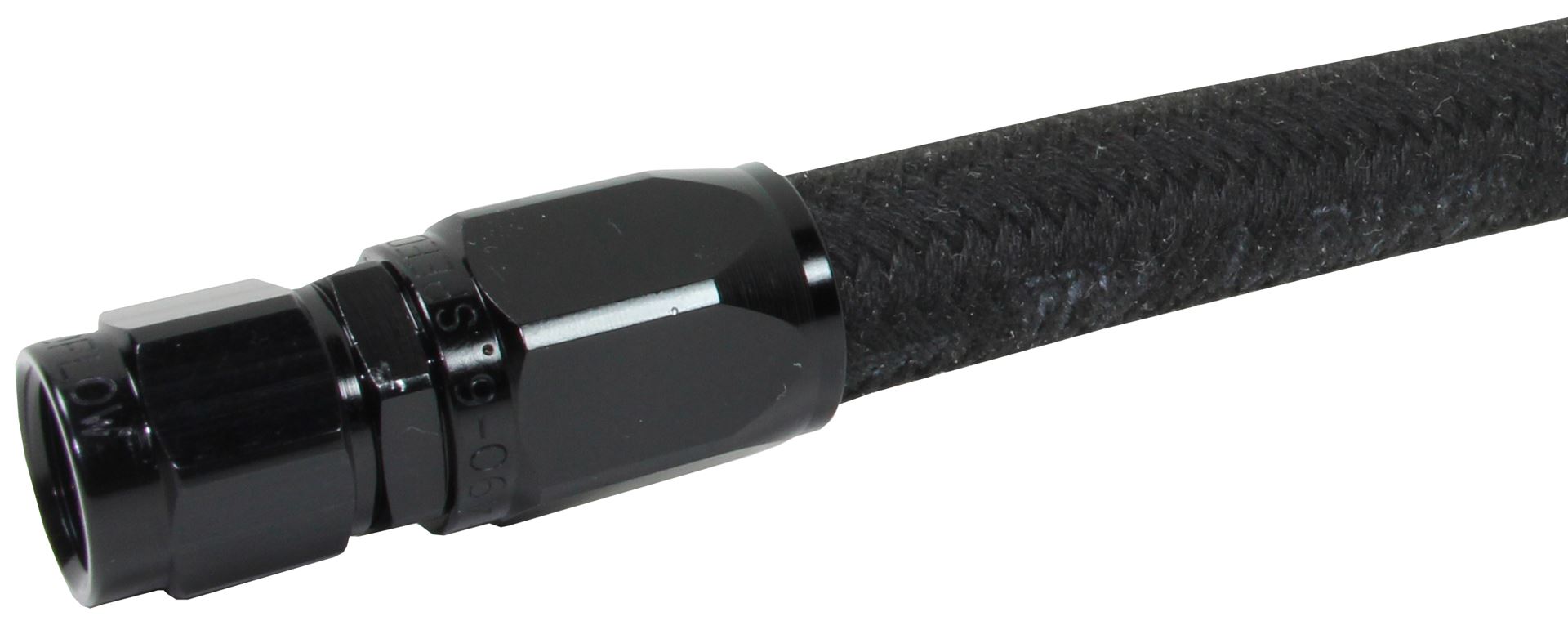

Speedflow's 490 series hose is designed for high pressure power steering applications using the 490 series fittings. The hose is constructed from a synthetic rubber tube with a textile inner braid, a single wire braid reinforcement and a rubber impregnated textile braid cover that is black in colour.

Temperature range: -40 degree C to 121 degree C

Size ID (mm) OD (mm) Operating Pressure (psi) Burst Pressure (psi) Weight (Kg/M) Bend Radius (mm) Stock Code Price Quantity
-06 7.90 17.30 2250 9000 0.34 101.60 490-06 $38.85
-08 10.40 19.60 1250 5000 0.23 44.50 490-08 $66.75
-10 12.70 23.90 1250 5000 0.59 57.20 490-10 $81.65

Speedflow's 490 series hose is designed for high pressure power steering applications using the 490 series fittings. The hose is constructed from a synthetic rubber tube with a textile inner braid, a single wire braid reinforcement and a rubber impregnated textile braid cover that is black in colour.

Temperature range: -40 degree C to 121 degree C
